products
click to select »

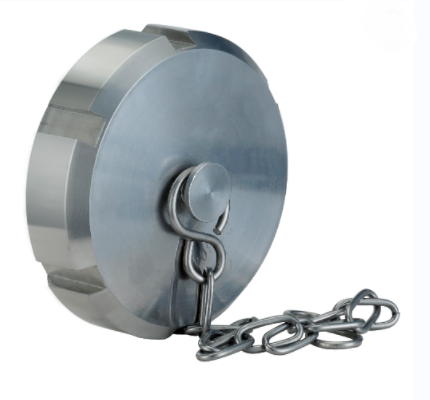

blind nuts(with chain)
nuomeng produce kinds of pipe products which have din,3a,sms,iso/idf,bs-rjt,ds and so on various
standard series.and pipe fitting:45°/90°/180°/bend series,tee/cross series,concentric(eccentric) series make
your pipeline system free connectivity.each series pipe fittings have welding ,clamp,thread and flange four
common install ways with your pipe system standard link.
nuomeng according to the customers requirements,devoted itself to manufacturing the kind of fitting materials
which can resistant to corrosion,wearing,welding and combination and have high intensity.in each manufacturing
process has strict control error,and pipe connectors have a variety of surface treatment methods,and uniform
shell thickness.

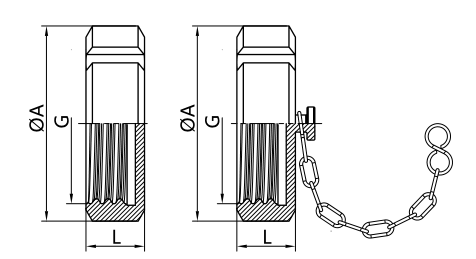

technical parameter
| size | a | g | l |
| dn10 | 38.0 | rd28*1/8 | 18.0 |
| dn15 | 44.0 | rd34*1/8 | 18.0 |
| dn20 | 54.0 | rd44*1/6 | 21.0 |
| dn25 | 63.0 | rd52*1/6 | 21.0 |
| dn32 | 70.0 | rd58*1/6 | 21.0 |
| dn40 | 78.0 | rd65*1/6 | 21.0 |
| dn50 | 92.0 | rd78*1/6 | 22.0 |
| dn65 | 112.0 | rd95*1/6 | 25.0 |
| dn80 | 127.0 | rd110*1/4 | 30.0 |
| dn100 | 148.0 | rd130*1/4 | 31.0 |
| dn125 | 178.0 | rd160*1/4 | 35.0 |
| dn150 | 210.0 | rd190*1/4 | 40.0 |
