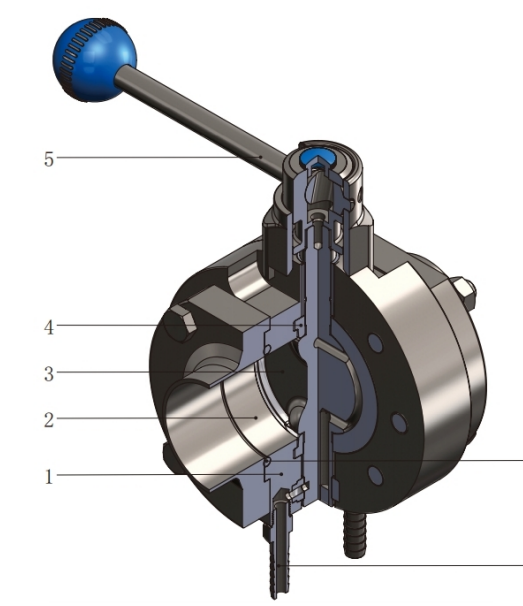

manual mix-proof butterfly valve
the mix-proof butterly valve ,with a purpose of separating media,is suitable for a variety of applications:
in cip systems,for separating cip media;
in flushing processes;
in water source management;
in pipelines,for separating media;
in cip/gas management(breweries);
in storage tanks,for separating product/cip;
as a cip return valve in a manifold;
preferable suitable for liquid and gaseous media without suspended matters/particles.
technical parameter
| size | d*t | |||||
| dn | nps | din11850-1 | din11850-2 | iso2037/iso1127 bs4825 | 3a/asme-bpe | l |
| dn50 | 2" | 52*1.5 | 53*1.5 | 50.8*1.5 | 50.8*1.65 | 104 |
| dn65 | 2.5" | 70*2.0 | 70*2.0 | 63.5*2.0 | 63.5*1.65 | 112 |
| dn80 | 3" | / | / | 76.2*2.0 | 76.2*1.65 | 120 |
| dn100 | 4" | 104*2.0 | 104*2.0 | 101.6*2.0 | 101.6*2.11 | 128 |
| / | / | dn | dn | nps | nps | / |
