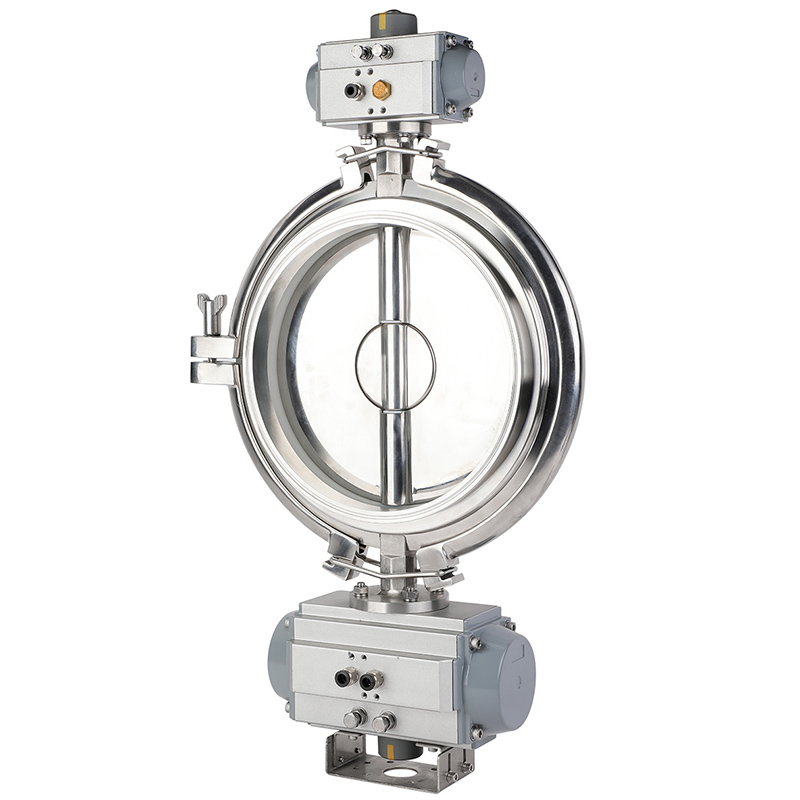

powder butterfly valve is specailly used for powder/granular materials in food and pharmaceutical industries.the valve body is made of stainless steel ss/hc/ti,and the disc is made of the same metal as the valve body.the soft seal(wear-resistant rubber sealing ring)makes it deal for all kinds of powders,especailly for materialswith strong abrasion.in powder and granular material handling systems that require gravity drop or pneumatic conveying,special powder butterfly valves are often installed in hoppers,silos,screw conveyor outlets and gas feed lines.
the butterfly valve is mainly used in the mixing process of granule-granule,granule-powder,powder-powder,materials in the production of solid preparation in pharmaceutical industry.it is widely used on ibc turnover hopper in pharmaceutical ,chemical and food industries.
- new and reasonable design;unique structure and light weight;rapid opening and closing.
- small operating torque.easy to operate;labor-saving and flexible.
- can be installed in any position;easy to miantain
- easy to remove and disassemble.convenient to clean and move.
- seals can be replaced .two-way sealing;zero leakage
- the sealing material is aging resistant,corrosion resistant.good performance in sealing and long service life.
this powder butterfly valve is developed by our company specifically for powder/granular material food and drug industry.
the valve body is made of ss/hc/ti,and the disc is lined with a stainless steel core of wear-resistant polymer material.
and the sofe seal(wear-resistant rubber sealing ring) makes it ideal for all kinds of powder and granular material applications.

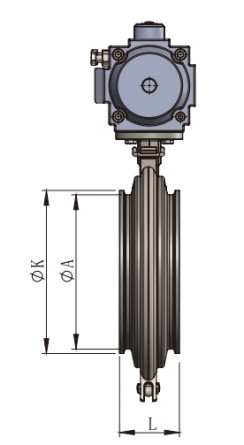

| size | a*k*l | ||||
| dn | nps | din11850-1 | 3a/asme-bpe | iso2037/iso1127 bs4825 | gb/t12459 |
| dn100 | 4" | 104*119*78 | 101.6*119*78 | 101.6*119*78 | 108*119*78 |
| / | 4.5" | / | / | 114.3*130*78 | / |
| dn125 | 5" | 129*155*78 | / | 127*145*78 | 133*145*78 |
| / | 5.5" | / | / | 139.7*155*78 | / |
| dn150 | 6" | 154*183*78 | 152.4*166.8*78 | 152.4*183*78 | 159*183*78 |
| dn200 | 8" | 204*233.5*78 | 203.2*217.7*78 | 219*233.5*78 | 219*233.5*78 |
| dn250 | 10" | 254*268*78 | 254*268*78 | 273*287*78 | 273*305*78 |
| dn300 | 12" | / | 304.8*319.3*90 | 306*338*90 | 325*338*90 |
| dn400 | 16" | / | / | 406.4*430*90 | / |
