applied on equipment in beer & beverage,printing and textile,gaseous,pharmaceutical and medical,chemical,high-temperature sterilization/foaming,and water treatment industries,etc.

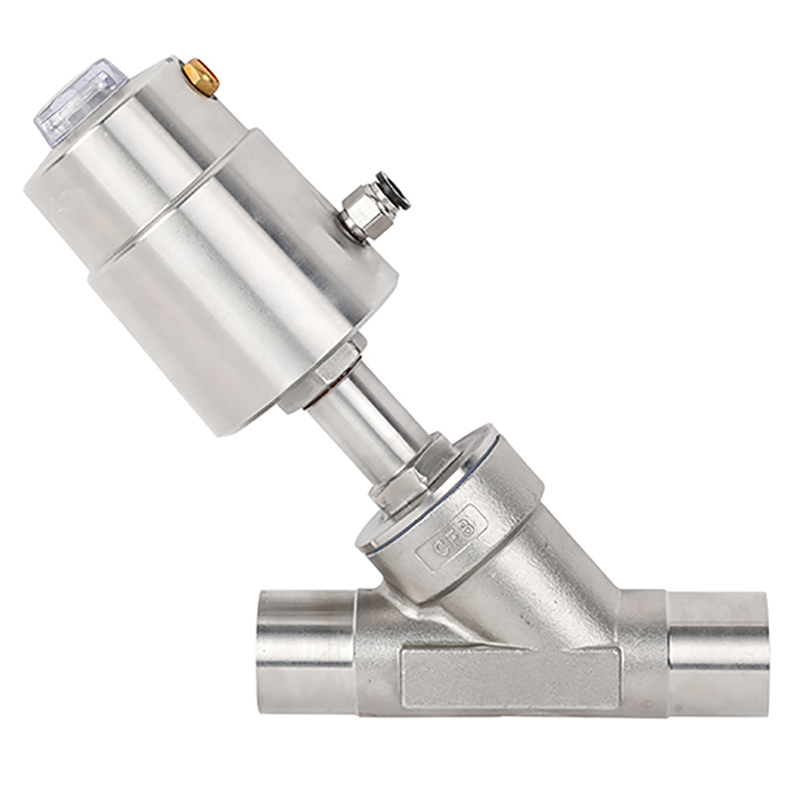

equipped with a stainless steel pneumatic actuator;can be used in harsh environments.resistant to uv light,with a service life longer than plastic or aluminum pneumatic actuator.
the exterir of food and pharmaceutical equipment needs to be cleaned.stainless steel pneumatic actuator can resist corrosive cleaning agents,designed to meed gmp standards and easy to clean.
feature：
1.it have valve open or close position display.
2.pneumatic guide outside ,can prolong the service life,maintenance free.
3.it have self-regulation sealing gland between overfall and slider,can improve sealing property.
4.the structure of angle seat valve body,can achievable mass flow (especailly compare with normal stop valve),
compact structure response is fast.

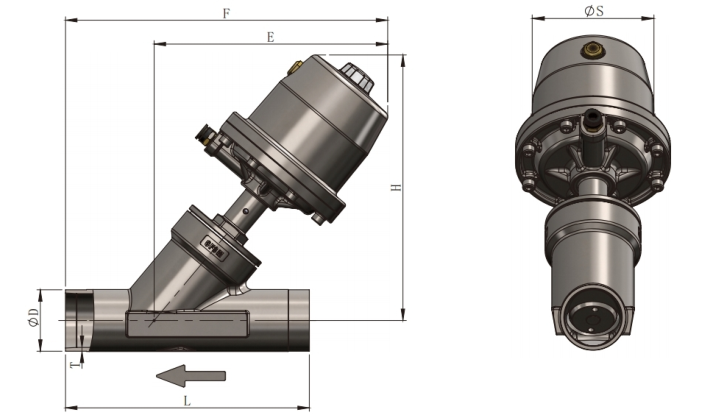

| size | d*k | l | s | e | f | h | ||||
| dn | nps | din11850-1 | din11850-2 | iso2037/iso1127 bs4825 | 3a/asme-bpe | |||||
| dn6 | 0.25" | 8*1.0 | / | 6.35*1.0 | 6.35*0.89 | 100 | 61 | 137 | 175 | 148 |
| dn8 | 0.375" | 10*1.0 | / | 9.53*1.0 | 9.53*0.89 | 100 | 61 | 137 | 175 | 148 |
| dn10 | 0.5" | 12*1.5 | 13*1.5 | 12.7*1.5 | 12.7*1.65 | 100 | 61 | 137 | 175 | 148 |
| dn15 | 0.75" | 18*1.5 | 19*1.5 | 19.05*1.5 | 19.05*1.65 | 100 | 61 | 137 | 175 | 148 |
| dn20 | / | 22*1.5 | 23*1.5 | 21.3*1.5 | / | 120 | 61 | 137 | 195 | 148 |
| dn25 | 1.0" | 28*1.5 | 29*1.5 | 25.4*1.5 | 25.4*1.65 | 120 | 61 | 133 | 190 | 149 |
| dn32 | 1.25" | 34*1.5 | 35*1.5 | 31.8*1.5 | / | 140 | 74.5 | 160 | 224 | 180 |
| dn40 | 1.5" | 40*1.5 | 41*1.5 | 38.1*1.5 | 38.1*1.65 | 155 | 74.5 | 164 | 232 | 184 |
| dn50 | 2" | 52*1.5 | 53*1.5 | 50.8*1.5 | 50.8*1.65 | 190 | 100 | 202 | 278 | 229 |
| dn65 | 2.5" | 70*2.0 | 70*2.0 | 63.5*2.0 | 63.5*1.65 | 190 | 100 | 202 | 278 | 229 |
| dn80 | 3" | / | / | 76.2*2.0 | 76.2*1.65 | 230 | 120 | 252 | 335 | 295 |
| dn80max | 3.5" | 85*2.0 | 85*2.0 | 88.9*2.0 | / | 249 | 150 | 293 | 376 | 328 |
| dn100 | 4" | 104*2.0 | 104*2.0 | 101.6*2.0 | 101.6*2.11 | 260 | 150 | 318 | 398 | 357 |
| / | / | dn | dn | nps | nps | / | / | / | / | / |
