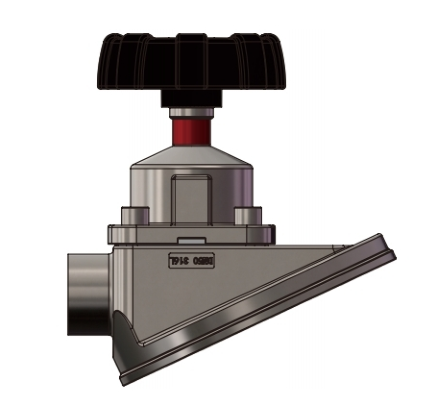

tank bottom diaphragm valve
suitable for inert and corrosive liquid and gaseous media
- support cip/sip.drainage,cleaning and sterillization effects is optimized
- impact design,suitable for installation in confined spaces
- the plastic handwheel is resistant to high temperature and prevents burns and damages caused by operation at high temperatures.
technical parameter
| technical parameters： | ||
| operation | manual/pneumatic | |
| dn | dn10-dn80 | |
| body material | astm a351:cf3m | astm a182:f316l 904l 2205 2507 |
| astm b564:c276 c22 | gb/t 2965 ta2 ta10 | |
| cap and core material | astm a351 cf8 | |
| connection | welded、clamped &flange | |
| operation pressure | dn10-dn80 pn10bar aisi:145psi | |
| operation temperature | dependent on diaphragm materials | |
| diaphragm material | epdm;epdm ptfe;epdm/ptfe | |
| medium-contacting inner surface roughness：≤ra0.4um ≤ra0.25um | ||
