can be applied in food,beverage,brewing,dairy,pharmaceutical and chemical industries,with an intended purpose of controlling
the flow of fluids with viscous or particulate matters.
compact structure and flexible mounting positiorns.
|

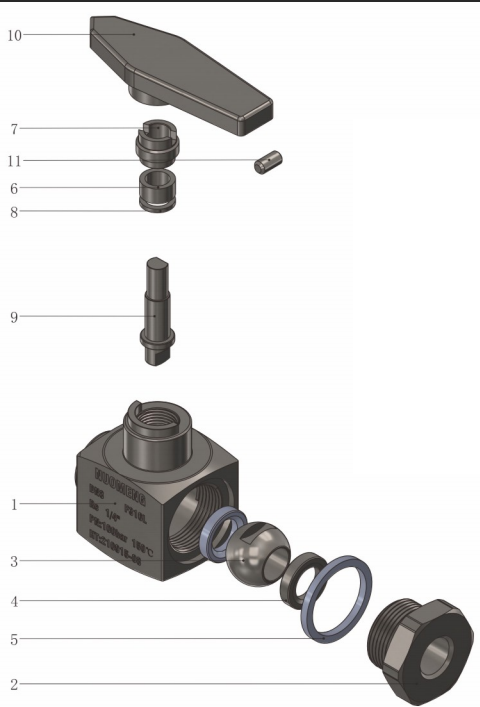

number |
name |
material |
|
1 |
valve body |
ss/hc/ti |
|
2 |
valve cap |
ss/hc/t |
|
3 |
valye core |
ss/hc/ti |
|
4 |
body seal |
ptfe |
|
5 |
cap seal |
ptfe |
|
6 |
v-seal components |
ptfe |
|
7 |
press nail |
304 |
|
8 |
ring |
ptfe |
|
9 |
valve stem |
ss/hc/ti |
|
10 |
handle standard |
al |
|
11 |
bolt |
304 |
note:the material of each part may be different under different working conditions.the specific materialshall prevail.
|
technical parameters: |
|
|
actuation |
stainless steel stem,aluminum stem |
|
size |
dn15-dn25 |
|
body |
straight body |
|
fluid-contacting surface |
ss/hc/ti |
|
non-fluid-contacting surface |
ss |
|
connectio |
welded,clamp,female thread,ferrule |
|
operation pressure |
pn63bar |
|
operation temperature |
dependent on seal materials |
|
fluid-contacting surface roughness:ra≤0.8 μm ≤0.4 μm |
|
|
external surface roughnes:≤ra0.8μm ≤ra0.4μm |
|
