can be applied in food,beverage,brewing,dairy,pharmaceutical and chemical industries,with an intended purpose of controlling
the flow of fluids with viscous or particulate matters.
made of 304/316l materials.the surface is polished until it's smooth and sanitary enough to meet the special requirements in food
and pharmaceutical industries.media can be completely drained,leaving no risk of contamination.
|

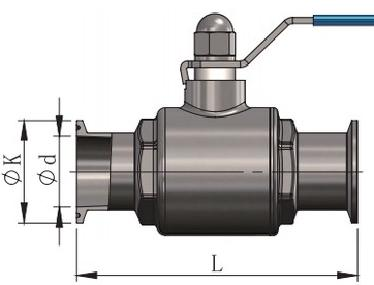

size |
k*d |
l |
k*d |
l |
|||
|
din11850-1 |
din11850-2 |
iso/sms |
3a/bpe |
||||
|
dn10 |
3/4" |
34*15 |
34*16 |
120 |
25*16.05 |
25*15.75 |
100 |
|
dn25 |
1" |
50.5*25 |
50.5*26 |
130 |
50.5*22.4 |
50.5*22.1 |
120 |
|
dn32 |
1 1/4 |
50.5*31 |
50.5*32 |
140 |
50.5*28.8 |
/ |
130 |
|
dn40 |
1 1/2" |
50.5*37 |
50.5*38 |
164 |
50.5*35.1 |
50.5*34.8 |
140 |
|
dn50 |
2" |
64*49 |
64*50 |
190 |
64*47.8 |
64*47.5 |
164 |
|
dn65 |
2 1/2" |
91*66 |
91*66 |
210 |
77.5*59.5 |
77.5*60.3 |
190 |
|
dn80 |
3" |
/ |
/ |
/ |
91*72.2 |
91*72.9 |
210 |
|
dn80max |
3 1/2" |
106*81 |
106*81 |
230 |
106*84.9 |
/ |
230 |
|
dn100 |
4" |
119*100 |
119*100 |
260 |
119*97.6 |
119*97.4 |
260 |
|
technical parameters: |
|
|

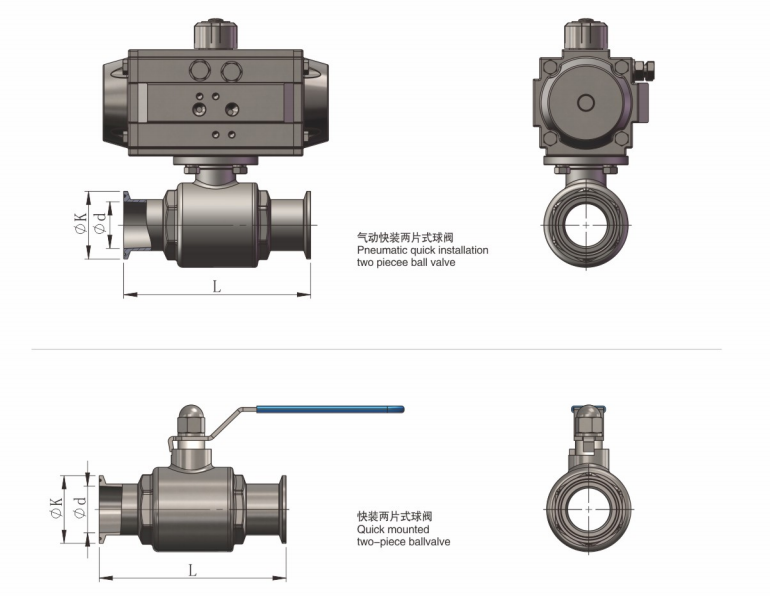

actuatio |
metal stem,auto-reset stem,turbine,aluminum pneumatic actuator (single/double acting),electric actuato |
|
size |
dn10-dn150 |
|
body |
2-pcs ball valve body |
|
fluid-contacting surface |
astm a351:cf8/cf3m |
|
non-fluid-contacting surface |
astm 304 |
|
connection |
welded,clamped,flange |
|
operation pressure |
dn10-dn150 pn10ba |
|
operation temperature |
dependent on seal materials |
|
fluid-contacting surface roughness:ra≤0.8 μm ≤0.4 μm |
|
|
extermal surface roughness:≤ra₀.8μm ≤ra₀.4μm |
|
