vacuum ball valve is used to connect or cut off the fluid in a vacuum system.
the 3-pcs valve is sealed by a spherical surface, which allows it to be used in both vacuum state and low pressure state,and to be installed in any position.
the valve body and valve stem are made of stainless steel,and the sealing materials such as valve seat and packing are ptfe,so it is suitable for media like
air,water,steam,acid,alkali and so on.
it is suitable for connecting or cutting off the medium flow of gas and liquid with acid or alkali in vacuum system and pressure system.
high vacuum ball valves are widely used in food,pharmaceutical,fine chemicals and new energy,vacuum casting, vacuum coating and semiconductor industries.
|
scope of application (pa) |
quick release flange(gb4982)0.1x105～1.3x10 lapped flange(gb6070)0.6x105~1.3x10- fixed flange (gb6070)1.6x105~1.3x10~* threaded1.6x106～1.3x10- |
|
leak rate(pa.l/s) |
≤1.3x10~⁴ |
|
media temperature |
-60～ 150(tfm1600) -30～ 240(pplseal) |
|

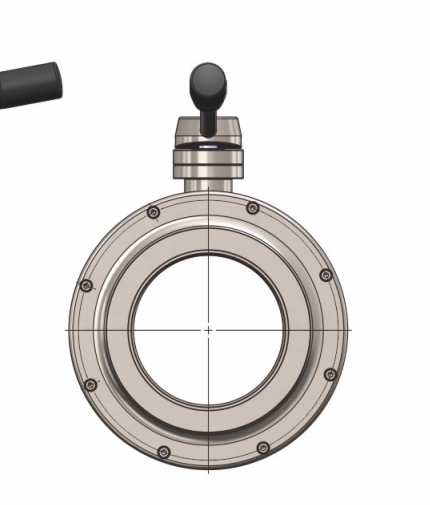

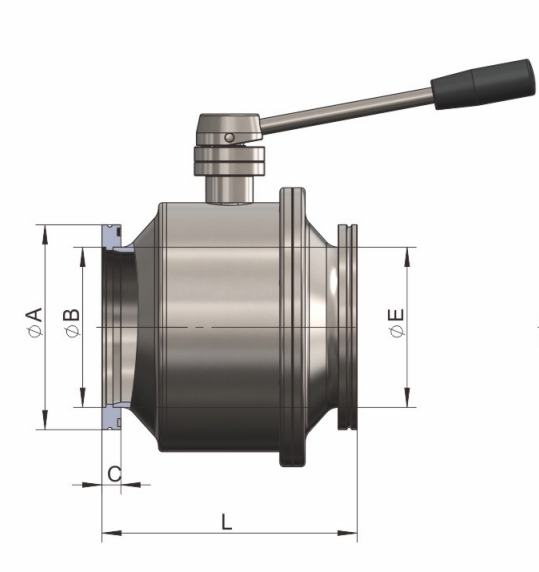

size |
a |
b |
c |
e |
l |
|
|
dn |
nsp |
|||||
|
iso63 |
2.5" |
95 |
70 |
12 |
63.7 |
110 |
|
iso80 |
3" |
110 |
83 |
12 |
76.4 |
125 |
|
iso100 |
4” |
130 |
102 |
12 |
101.8 |
162 |
|
iso160 |
6" |
180 |
153 |
12 |
152.9 |
230 |
|
so200 |
8" |
240 |
213 |
12 |
203.7 |
300 |
|
technical parameters: |
|
|
actuation |
stainless steel stem,aluminum pneumatic actuator (single/double acting),electric actuator |
|
size |
dn10-dn100 |
|
body |
vacuum body |
|
fluid-contacting surface |
ss/hc/ti |
|
non-fluid-contacting surface |
ss |
|
connection |
weld,quick release flange,flange |
|
operation pressure |
dn10-dn100 pn16bar |
|
operation temperature |
dependent on seal materials |
|
fluid-contacting surface roughness:≤ra0.6μm ≤ra0.25μm |
|
|
external surface roughness:ra≤0.8μm ≤0.4μm |
|
