to be applied in pharmaceutical industries and chemical equipment:pressure vessel,seawater treatment equipment,seawater heat exchanger,papermaking machine,sulfuric acid/nitric acid equipment.
to be applied in food industry:soy sauce,cooking wine,salt equipment.
to be used for controlling the flow of fluids with viscous or particulate matters;available with automatic or manual actuationmanners.
products are mechanically polished until the surface is smooth and clean.media can be completely drained,leaving no risk of contamination.
blow-out proof stem adds safety and reliability to the full extent.
1.thickened stem packing;v-shaped stacking design;adjustable self-compensating gland.
2.the sealing point is above the thread of valve cap,so media won't accumulate in the clearance of threads.
3.all sealing materials contacting with fluids are reinforced ptfe,in accordance with fda177.1550 and gmp standards.
4.support cip (clean-in-place)and sip (sterilization-in-place).
|

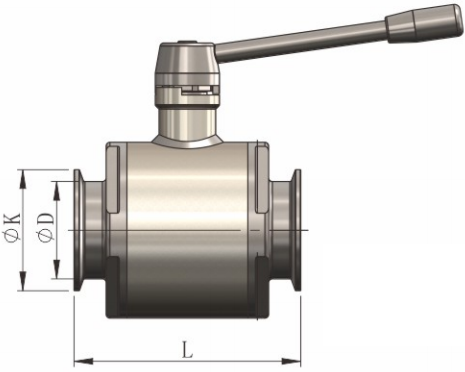

size |
k*d |
l |

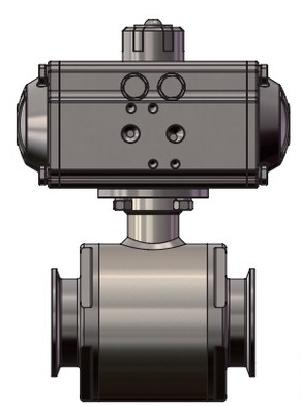

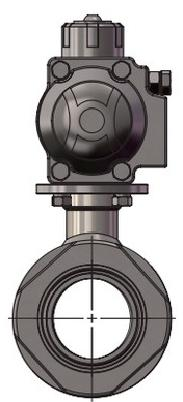

pneumatic head specifications |
|||||
|
din 11850-1 |
din 11850-2 |
iso 2037/iso 1127 bs4825 |
3a/asme-bpe |
single acting |
double action |
|||
|
dn10 |
0.5" |
34*12 |
34*13 |
25*12.7 |
25*12.7 |
93 |
nm50s |
nm50d |
|
dn15 |
0.75” |
34*18 |
34*19 |
25*19.05 |
25*19.05 |
103 |
nm50s |
nm50d |
|
dn20 |
/ |
34*22 |
34*23 |
50.5*19.05 |
50.5*19.05 |
103 |
nm50s |
nm50d |
|
dn25 |
1" |
50.5*28 |
50.5*29 |
50.5*25.4 |
50.5*25.4 |
110 |
nm65s |
nm50d |
|
dn32 |
1.25° |
50.5*34 |
50.5*35 |
50.5*31.8 |
/ |
120 |
nm75s |
nm65d |
|
dn40 |
1.5" |
50.5*40 |
50.5*41 |
50.5*38.1 |
50.5*38.1 |
129 |
nm75s |
nm65d |
|
dn50 |
2" |
64*52 |
64*53 |
64*50.8 |
64*50.8 |
145 |
nm85s |
nm75d |
|
dn65 |
2.5" |
91*70 |
91*70 |
77.5*63.5 |
77.5*63.5 |
170 |
nm95s |
nm85d |
|
dn80 |
3" |
/ |
/ |
91*76.2 |
91*76.2 |
183 |
nm95s |
nm85d |
|
dn80max |
3.5" |
106*85 |
106*85 |
106*88.9 |
/ |
200 |
nm95s |
nm85d |
|
dn100 |
4" |
119*104 |
119*104 |
119*101.6 |
119*101.6 |
240 |
nm110s |
nm95d |
|
dn125 |
5" |
155*129 |
155*129 |
145*133 |
/ |
318 |
nm110s |
nm95d |
|
dn150 |
6" |
183*154 |
183*154 |
183*159 |
166.8*152.4 |
393 |
nm110s |
nm95d |
|
dn |
nps |
dn |
dn |
nps |
nps |
/ |
/ |
/ |
|
technicalparameters |
|
|
actuation |
stainless steel stem,aluminum pneumatic actuator (single/double acting),electric actuator |
|
size |
dn10-dn100 |
|
body |
manual body,pneumatic body |
|
fluid-contacting surface |
ss/hc |
|
non-fluid-contacting surface |
ss |
|
connection |
welded,clamped,flange,thread,etc. |
|
operation pressure |
dn10-dn100 pn10bar |
|
operation temperature |
dependent on sealmaterials |
|
fluid-contacting surface roughness:≤ra0.6μm≤ra0.25μm |
|
|
external surface roughness:ra≤0.8 μm以及≤0.4μm |
|
