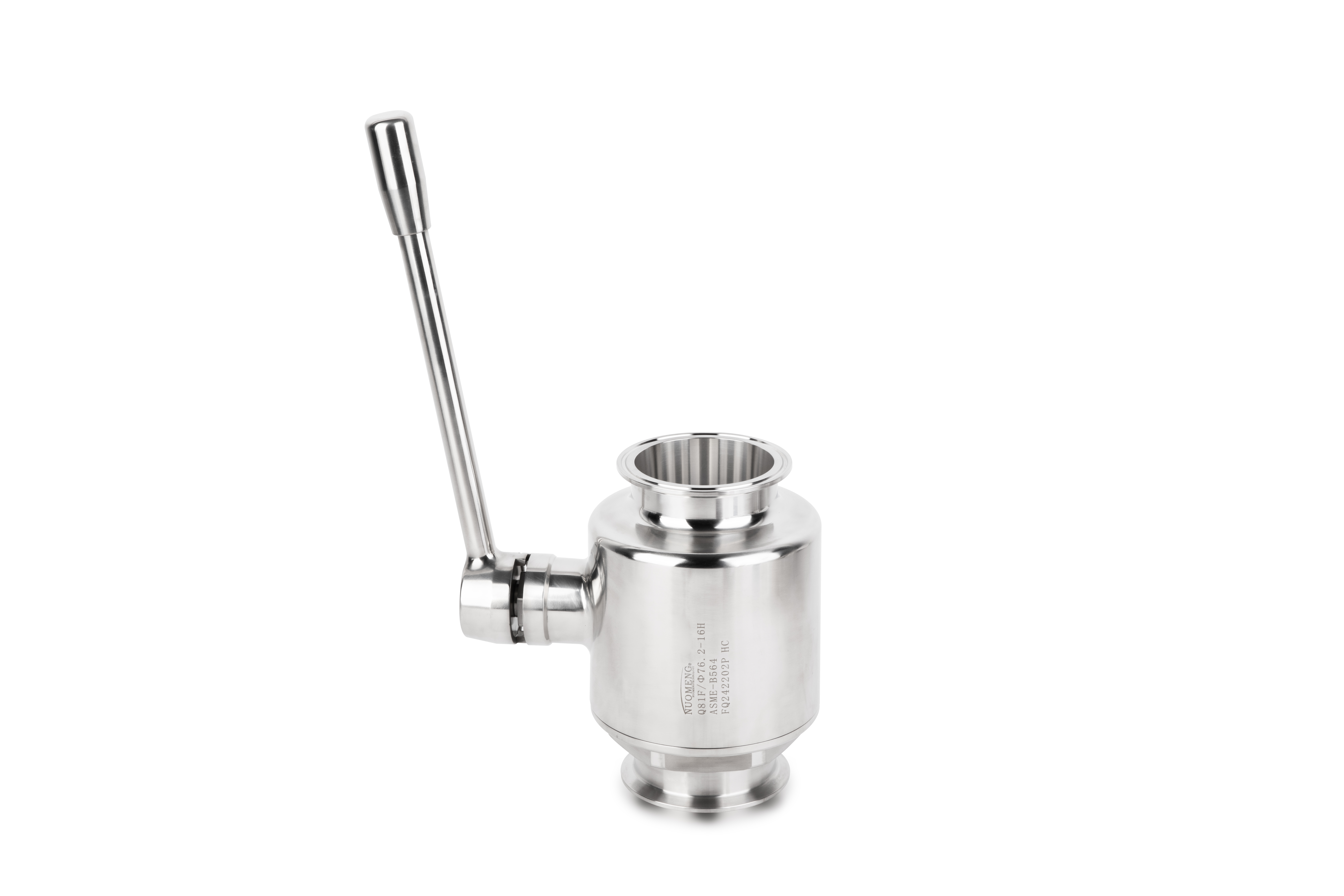

to be used for controlling the flow of fluids with viscous or particulate matters;available with automatic or manual actuationmanners.
products are mechanically polished until the surface is smooth and clean.media can be completely drained,leaving no risk of contamination.
防脱出阀杆设计，保证最大程度的安全。
blow-out proof stem adds safety and reliability to the full extent.
阀杆密封填料加厚多层v 型堆叠设计带可调自补偿装置。
thickened stem packing;v-shaped stacking design;adjustable self-compensating gland.
密封点设置在阀盖螺纹前端，介质不会滞留在阀盖连接螺纹间隙内。
the sealing point is above the thread of valve cap,so media won't accumulate in the clearance of threads.
所有接液面密封材料采用增强型ptfe符合fda177.1550 以及gmp 要求。
all sealing materials contacting with fluids are reinforced ptfe,in accordance with fda177.1550 and gmp standards.
支持cip在线清洗以及sip 高温灭菌。
support cip (clean-in-place)and sip (sterilization-in-place).
|

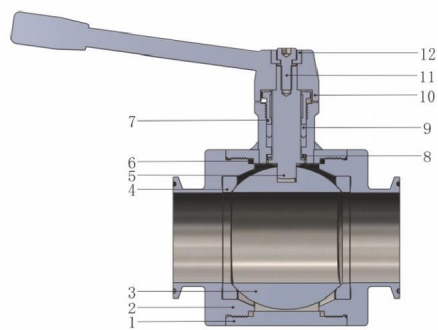

number |
name |
material |
|
1 |
valve body |
ss/hc/ti |
|
2 |
valve cap |
ss/hc/ti |
|
3 |
ball core |
ss/hc/ti |
|
4 |
body sea |
ptfe |
|
5 |
valve stem |
ss/hc/ti |
|
6 |
cap seal |
ptfe |
|
7 |
press nail |
304 |
|
8 |
ring |
ptfe |
|
9 |
v-seal components |
ptfe |
|
10 |
handle |
304 |
|
11 |
screw |
304 |
|
12 |
cover plate |
304 |
note:the material of each part may be diferent under different working conditions.the specific materialshall prevail.
|
technicalparameters |
|
|
actuation |
stainless steel stem,aluminum pneumatic actuator (single/double acting),electric actuator |
|
size |
dn10-dn100 |
|
body |
manual body,pneumatic body |
|
fluid-contacting surface |
ss/hc |
|
non-fluid-contacting surface |
ss |
|
connection |
welded,clamped,flange,thread,etc. |
|
operation pressure |
dn10-dn100 pn10bar |
|
operation temperature |
dependent on sealmaterials |
|
fluid-contacting surface roughness:≤ra0.6μm≤ra0.25μm |
|
|
external surface roughness:ra≤0.8 μm以及≤0.4μm |
|
