5pcs ball valve can be applied in food,beverage,dairy,brewing,pharmaceutical and chemical industries with a purpose of conveying the
fluids with viscous or particulate matters.

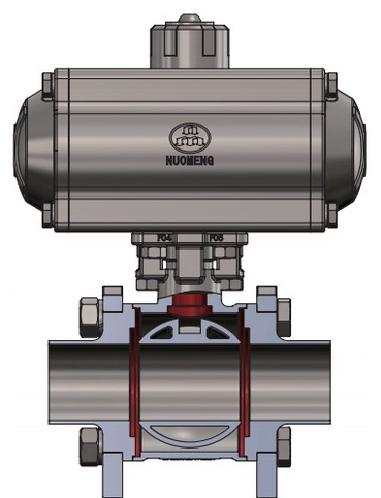

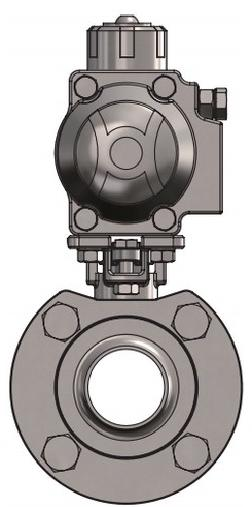

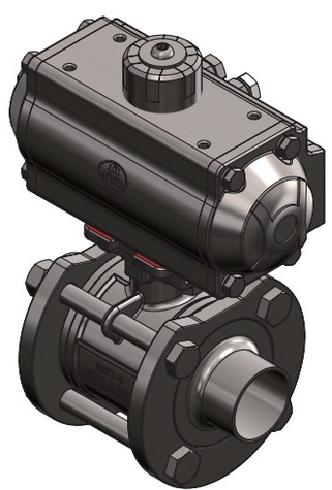

5-pcs ball valve is composed of a body,a pneumatic actuator(which actuates the movement of the body),a ball and stem.
on both sides of the valve body stands two brackets which are connected by bolts.besides brackets,there are two rotatable
plates.the plates pass through the brackets and can be connected with pipes.
|

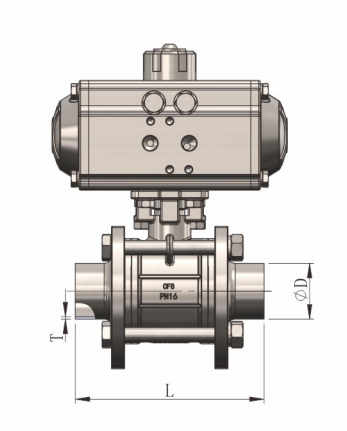

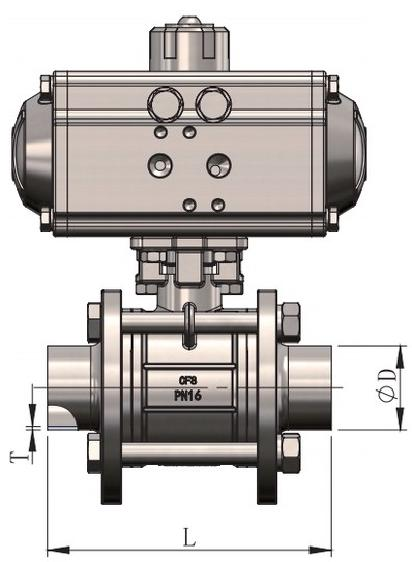

size |
d*t |
l |
pneumatic head specifications |
|||||
|
din11850-1 |
din11850-2 |
iso/sms |
3a/bpe |
single acting |
double action |
|||
|
dn10 |
1/2" |
12*1.5 |
13*1.5 |
12.7*1.5 |
12.7*1.65 |
93 |
nm50s |
nm50d |
|
dn15 |
3/4" |
18*1.5 |
19*1.5 |
19.05*1.65 |
19.05*1.65 |
103 |
nm50s |
nm50d |
|
dn20 |
/ |
22*1.5 |
23*1.5 |
/ |
/ |
103 |
nm50s |
nm50d |
|
dn25 |
1" |
28*1.5 |
29*1.5 |
25.4*1.5 |
25.4*1.65 |
110 |
nm65s |
nm50d |
|
dn32 |
11/4" |
34*1.5 |
35*1.5 |
31.8*1.5 |
/ |
120 |
nm75s |
nm65d |
|
dn40 |
11/2" |
40*1.5 |
41*1.5 |
38.1*1.5 |
38.1*1.65 |
129 |
nm75s |
nm65d |
|
dn50 |
2" |
52*1.5 |
53*1.5 |
50.8*1.5 |
50.8*1.65 |
145 |
nm85s |
nm75d |
|
dn65 |
21/2" |
70*2.0 |
63.5*2.0 |
63.5*1.65 |
170 |
nm95s |
nm85d |
|
|
dn80 |
3" |
/ |
76.2*2.0 |
76.2*1.65 |
183 |
nm95s |
nm85d |
|
|
dn80max |
3.5" |
85*2.0 |
/ |
/ |
200 |
nm95s |
nm85d |
|
|
dn100 |
4" |
104*2.0 |
101.6*2.0 |
101*2.11 |
240 |
nm110s |
nm95d |
|
|
technicalparameters: |
|
|
actuation |
stem,auto-reset stem,turbine,aluminum pneumatic actuator (single/double acting),electric actuator |
|
size |
dn15-dn100 |
|
body |
straight body |
|
fluid-contacting surface |
astm a351:cf8/cf3m/2205(304/316l/2205) |
|
non-fluid-contacting surface |
astm ss304 |
|
connection |
weld,clamp,female thread |
|
operation pressure |
dn10-dn100 pn16bar |
|
operation temperature |
dependent on seal materials |
|
fluid-contacting surface roughness:≤ra0.6μm ≤ra0.25μm |
|
|
external surface roughness:ra≤0.8μm以及≤0.4 μm |
|
