applied on equipment in beer & beverage,printing and textile,gaseous,pharmaceutical and medical,chemical,high-temperature sterilization/foaming,and water treatment industries,etc.
components include an advanced pneumatic actuator,engineering plastic housing,low friction brass nickel-plated piston and internal self-lubricating elements.maintenance-free;able to rotate by 360℃。
can be connected with a solenoid valve via namur interface.normally divided into three types:normally closed,normally open and double-acting.
feature：
1.it have valve open or close position display.
2.pneumatic guide outside ,can prolong the service life,maintenance free.
3.it have self-regulation sealing gland between overfall and slider,can improve sealing property.
4.the structure of angle seat valve body,can achievable mass flow (especailly compare with normal stop valve),compact structure response is fast.

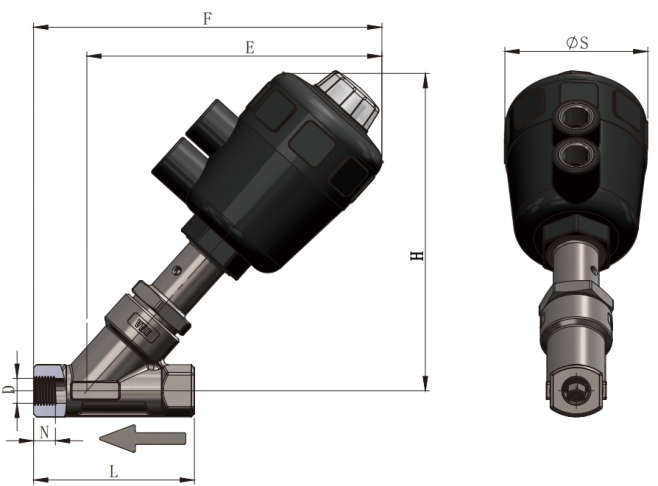

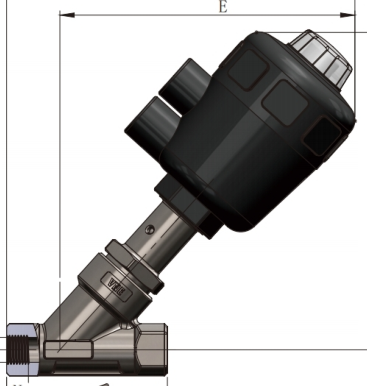

| size | d*k | l | s | e | f | h | |||
| dn | d | rc | npt | g | |||||
| dn8 | 1/4 | 10 | 10 | 10 | 75 | 65 | 137 | 160 | 146 |
| dn10 | 3/8 | 11 | 11 | 11 | 75 | 65 | 137 | 161 | 148 |
| dn15 | 1/2 | 13.2 | 13.7 | 14 | 80 | 65 | 137 | 165 | 148 |
| dn20 | 3/4 | 14.5 | 14.0 | 16 | 95 | 65 | 136 | 172 | 152 |
| dn25 | 1 | 16.8 | 16.8 | 18 | 105 | 80 | 179 | 214 | 183 |
| dn32 | 1 1/4 | 19.1 | 17.3 | 16 | 120 | 80 | 174 | 218 | 192 |
| dn40 | 1 1/2 | 19.1 | 17.3 | 18 | 130 | 80 | 181 | 225 | 201 |
| dn50 | 2 | 23.4 | 17.6 | 24 | 150 | 100 | 221 | 266 | 227 |
| dn65 | 2 1/2 | 26.7 | 23.7 | 26 | 190 | 125 | 283 | 346 | 290 |
| dn80 | 3 | / | / | 28 | 220 | 158 | 324 | 387 | 324 |
| rc(iso7-1),npt(asme b 1.20.1),g(din iso 288-1) | |||||||||
